US-150KW Industrial Energy storage solar system

The 150kWh Commercial Industrial Solar Battery Storage System is a powerful and versatile energy solution designed to meet the demanding needs of commercial and industrial applications.

Model:	BSC-150KW-301KWh
Rated Output Power:	150kW
System Capacity:	301KWH
Battery Type:	LiFePO4
Quality Guarantee:	5 Years+

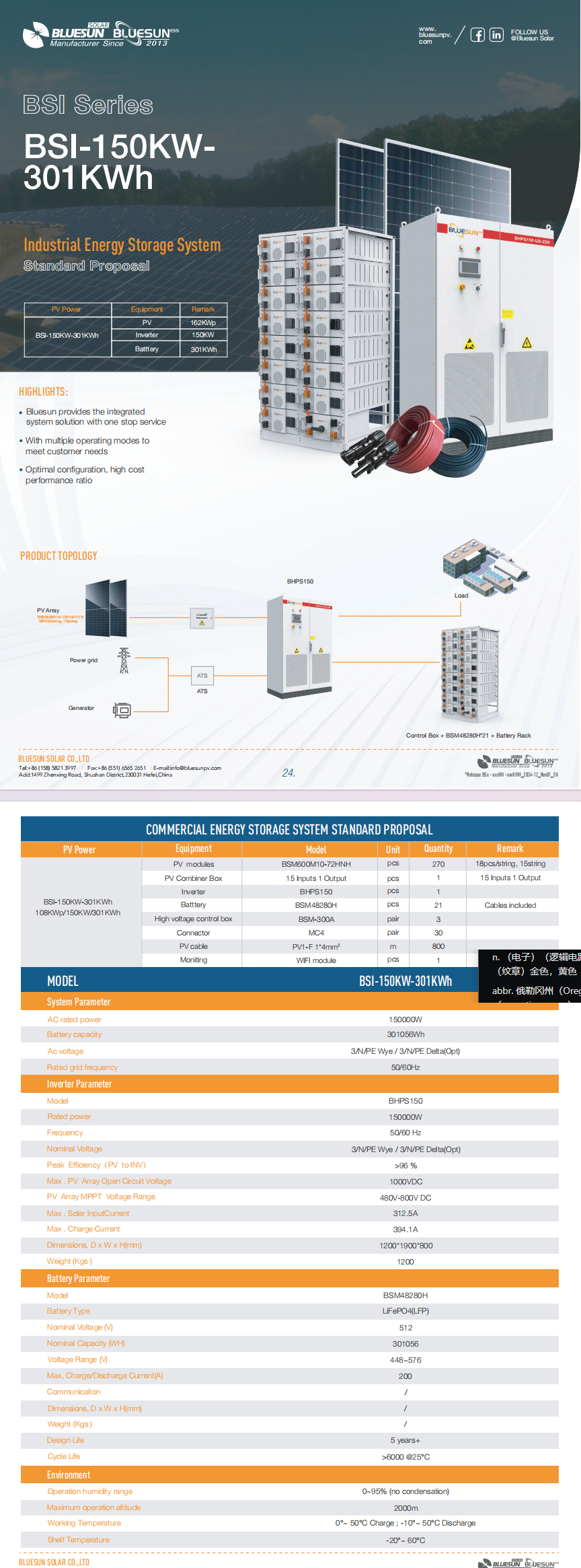

Inquiry Now Datasheet

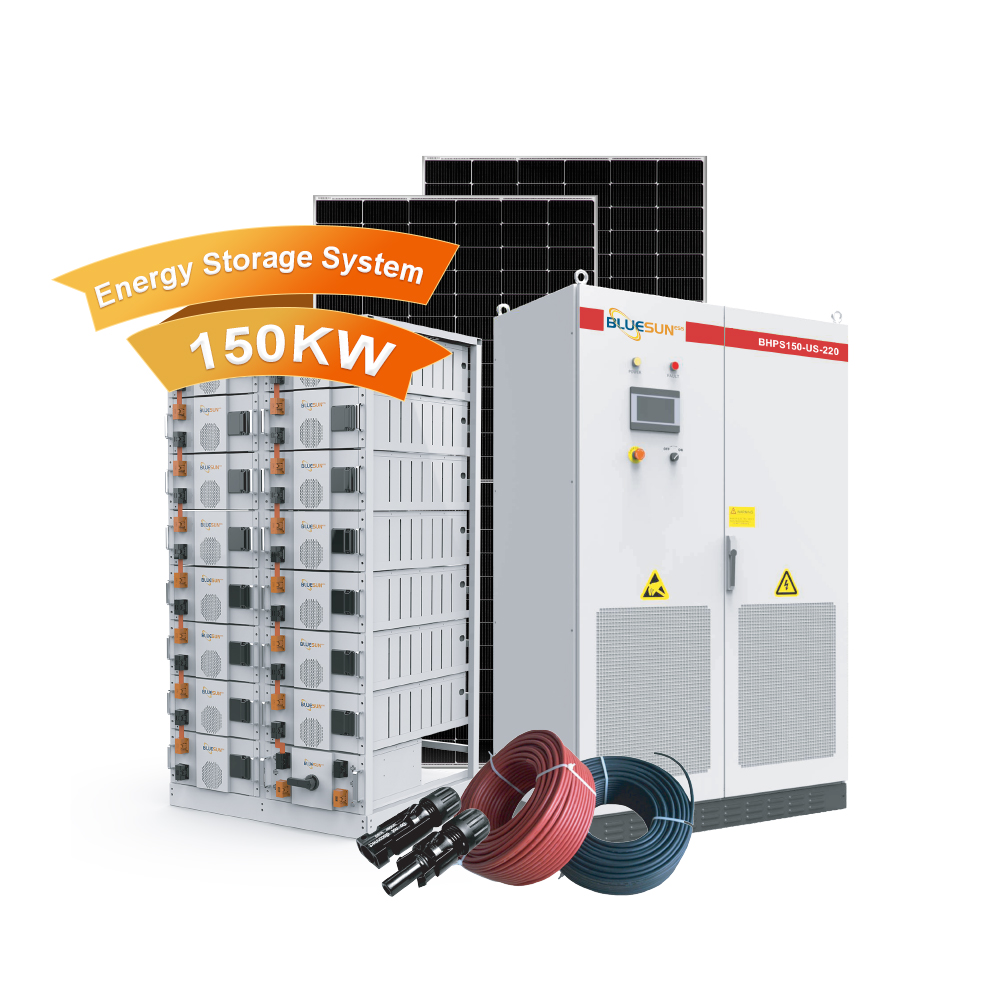

Product Appearance

Highlights:

·Bluesun provides the integrated system solution with one stop service

·With multiple operating modes to meet customer needs

·Optimal configuration,high costperformance ratio

System Configuration

PV Power	Equipment	Model	Unit	Quantity	Remark

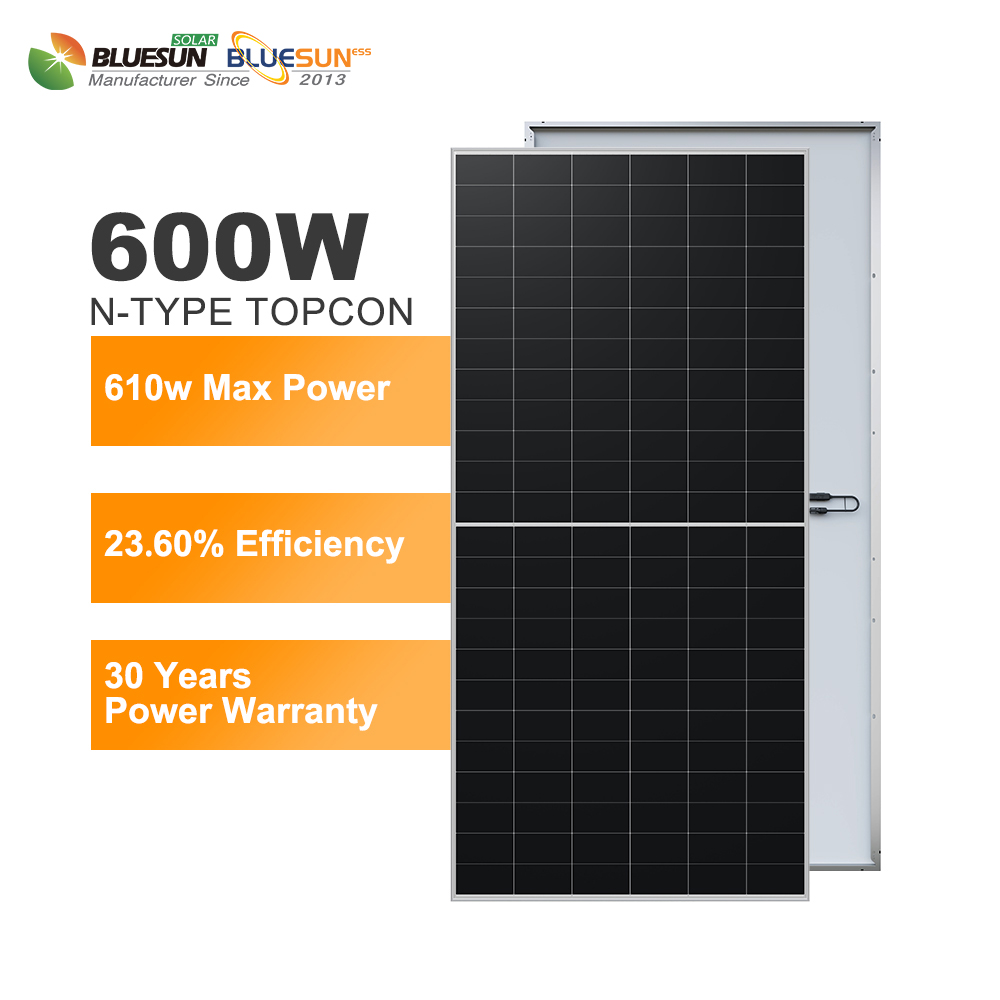

BSC-150KW-301KWh 108kWp/150kW/301kWh	PV modules	BSM600M10-72HPH	pcs	270	18pcs/string,15string
	Inverter	BHPS150	pcs	1
	Batttery	BSM48280H	pcs	21	Cables included
	Batttery	Control Box	pcs	3
	Connector	MC4	pair	30

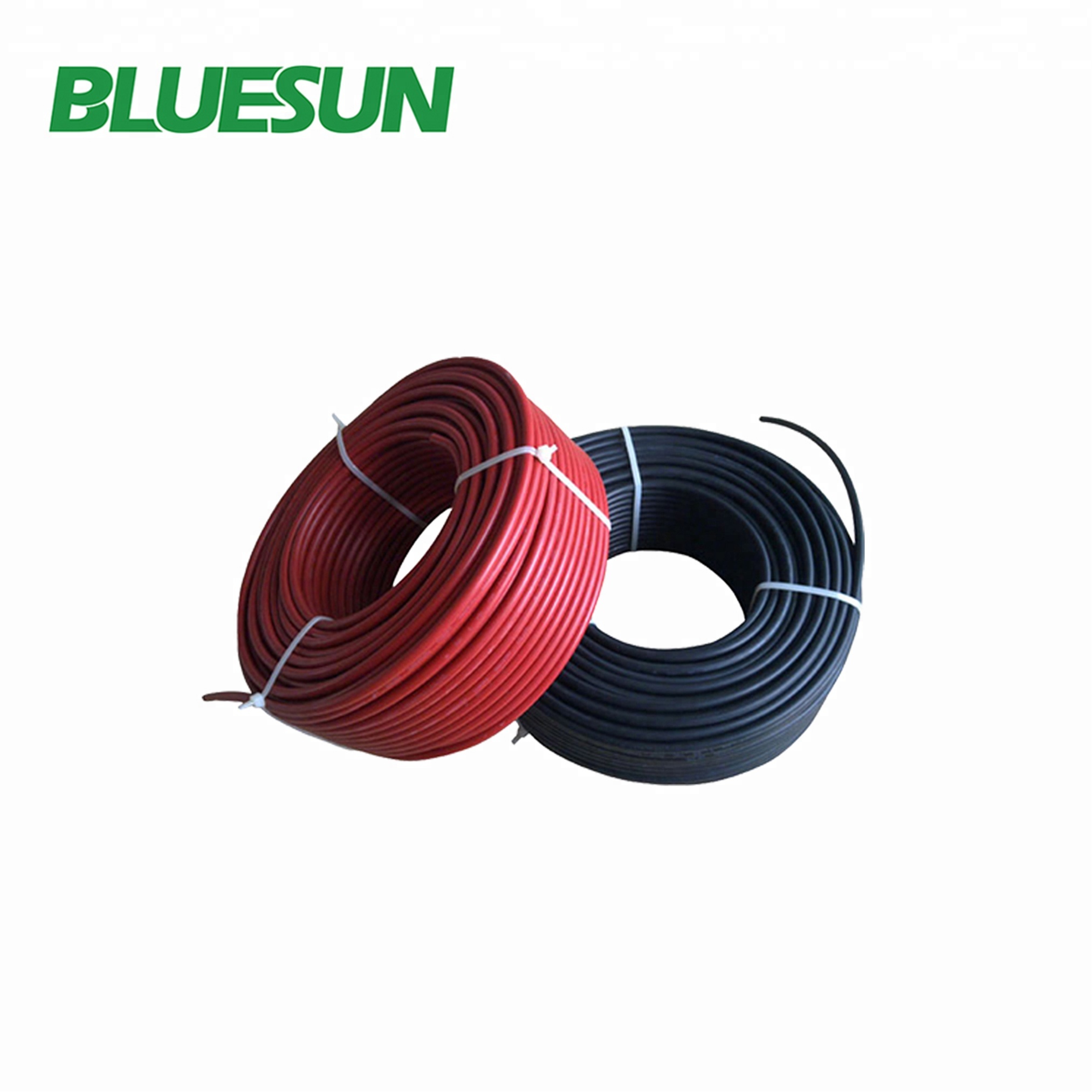

	PV cable	PV1-F 1*4mm2	m	800
	Moniting	WIFI module	pcs	1	Optional

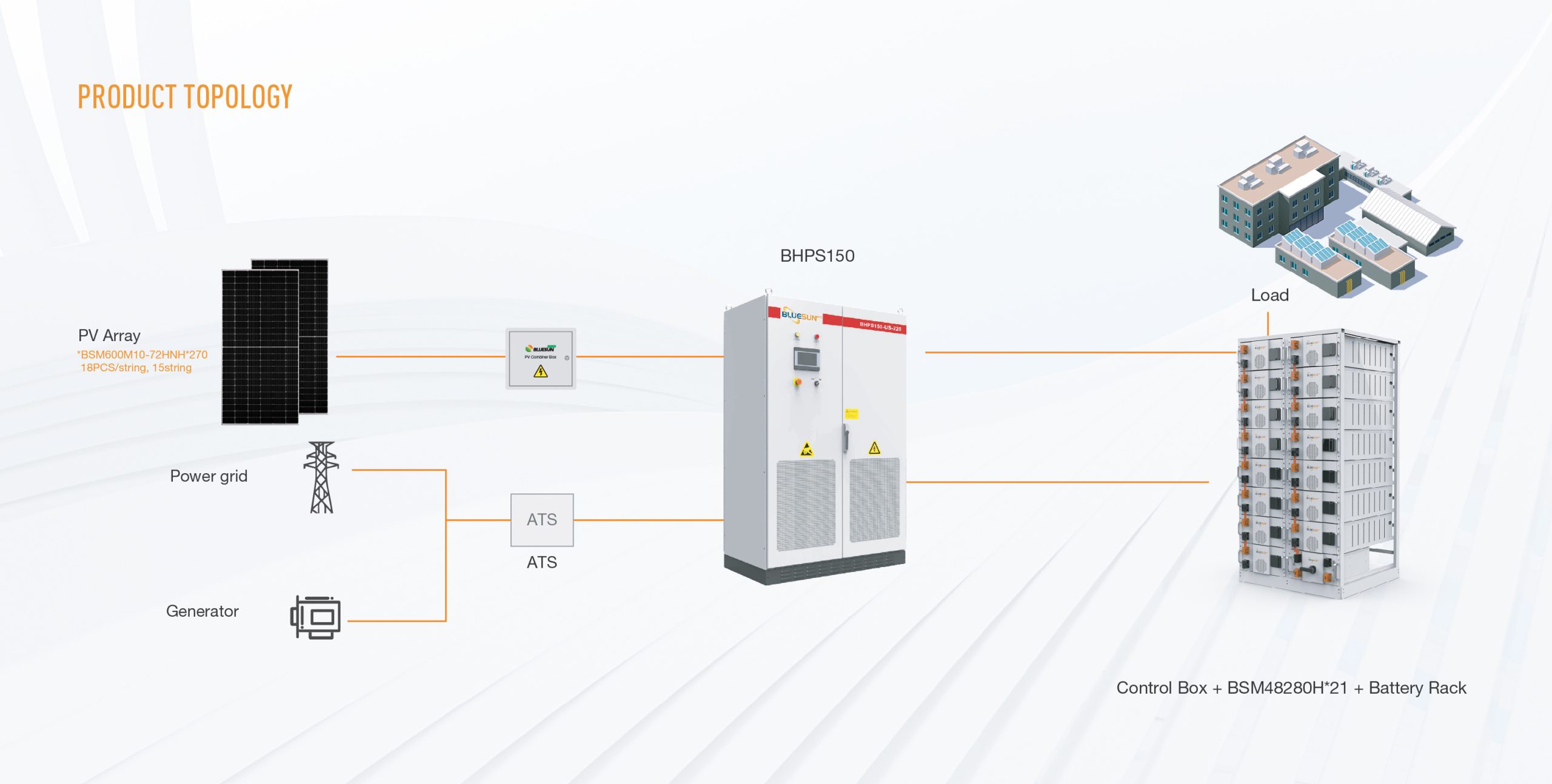

System Block Diagram

150KW/301KWH Energy Storage System

MODEL	BSC-150KW-301KWh
System Parameter
AC rated power	150kW
Battery capacity	301kWh
AC voltage	3/N/PE Wye / 3/N/PE Delta(Opt)
Reted grid frequency	50/60Hz

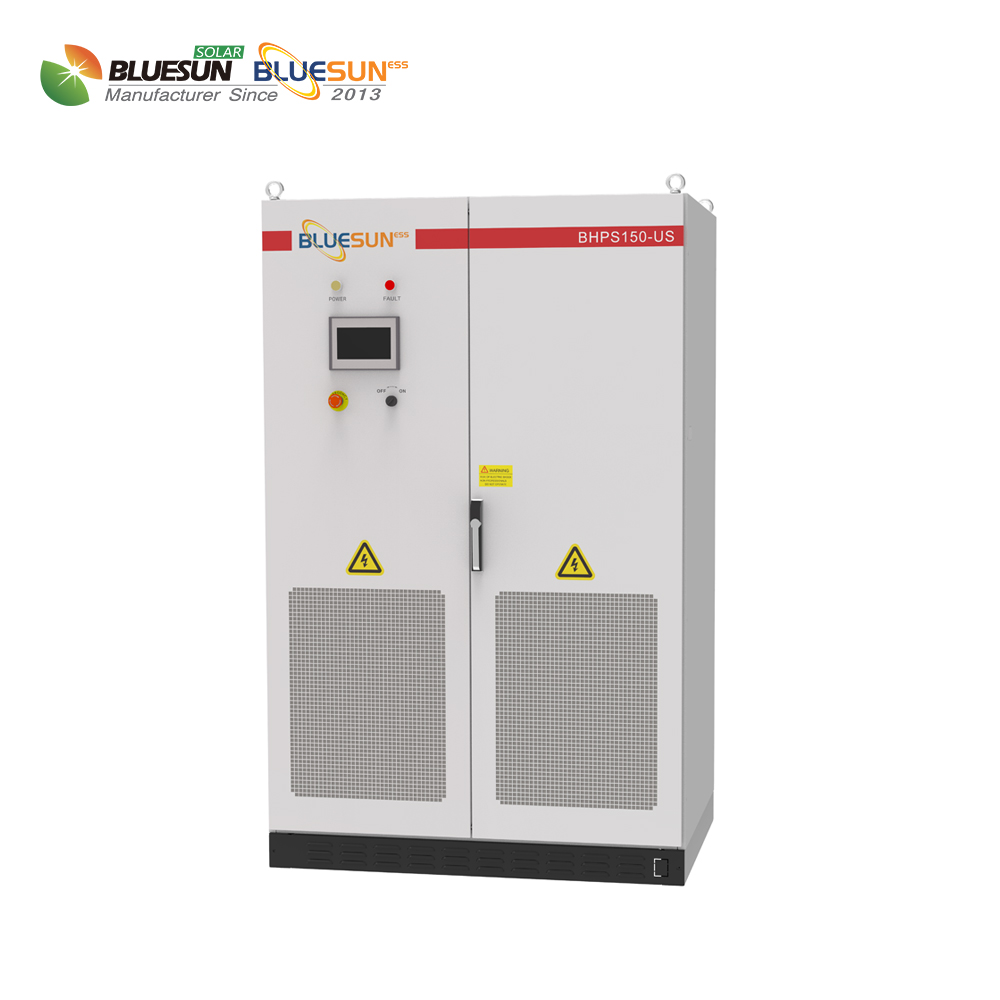

Inveter Paramete
Model	BHPS 150
Rated power	150kW
Frequency	50/60 Hz
Nominal Voltage	3/N/PE Wye / 3/N/PE Delta(Opt)
Max.Efficiengy	>96 %
Max.PV Voltiage (v)	1000VDC
PV Array MPPT Voltage Range	480-800VDC
Max.Solar Ihput Ourrent	312.5A
Max.Short Curent(A)	394.1A
Dimensions,D x W x H(mm)	12001900800
Weight (Kgs)	1200
Battery Parameter
Model	BSM48280H
Battery Type	LiFePO4(LFP)
Nominal Voltage (v)	512
Nominal Capaclty (WH)	301056
Voltage Range V)	448~576
Max.Charge/Discharge Current(A)	200
Commuicaiton	/
Weight (Kgs)	/
Design Life	5 years+
Cycle Life	>6000@25℃
Environmemt
Maimum operation altitude	2000m
Working Temperature	0~50℃ Charge;-10℃~50℃ Dlischarge
Shelf Temperature	-20℃-60℃
